SolidWorks requires users to customize the template according to the specific situation, through the formulation of the template to avoid repeated modifications, such as unit, size system, arrow type and size... However, in addition to these regular settings, the file attribute customization in the part also needs our attention. The customization of the file attributes of the part affects the use of part drawings and bills of materials.

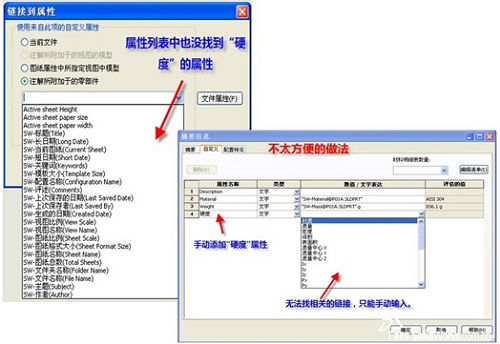

figure 1
Customize the material, weight, supplier and other attributes according to the specific situation by creating a new part----file---- attribute. Then save the PartTemplates. Using the template to design the part, you can avoid repetitive property customization. When the material is specified, the material-related properties are also connected to the file properties, part drawing, bill of materials, etc.
figure 2
image 3
Figure 4
